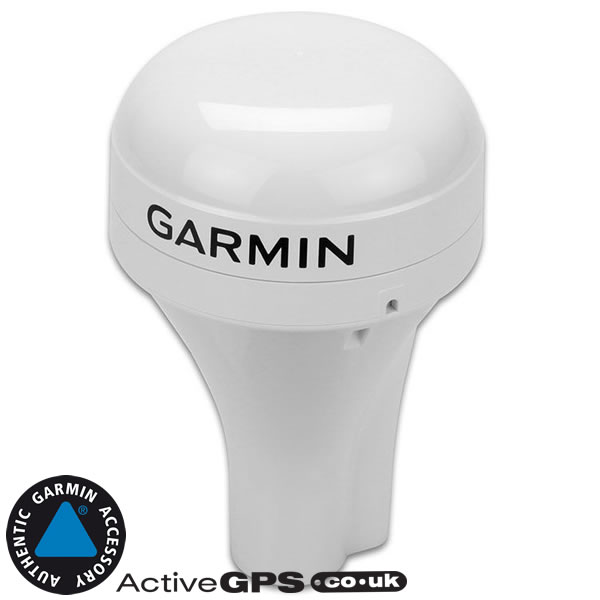

Garmin GPS 24x HVS NMEA 0183 Antenna

Product Code: GARG24X

The highly accurate Garmin GPS 24x HVS NMEA 0183 position receiver/antenna provides 10 Hz update rates for position, velocity and time data. It offers high-sensitivity reception and enhanced position acquisition to the Garmin family of marine multifunctional displays (MFD), instrument display and autopilots.

Utilising multi-band GNSS system the Garmin GPS 24x HVS NMEA 0183 antenna provides precise location accuracy* to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots. GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo**, GLONASS and BeiDou**) to more accurately track in challenging conditions than GPS alone.

*Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%

**Supported when available in the sky above.

Please note: If you have a NMEA 2000 network the antenna to purchase is the Garmin GPS 24xd NMEA 2000 Antenna.

Garmin part number: 010-02316-00

Compatibility: Compatible with a number of Garmin ranges including the Garmin GPSMAP chartplotter series. To view the full compatibility list of Garmin products see below.


Garmin GPS 24x HVS NMEA 0183 Antenna - £269.99


Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 5.30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 4.30pm. When possible we may despatch orders received after that time. No orders are despatched after 5.30pm and no orders are despatched on Saturday or Sunday.

We offer FREE UK delivery on all orders of £40.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.


Garmin GPS 24x HVS NMEA 0183 Receiver/Antenna

The highly accurate Garmin GPS 24x HVS NMEA 0183 position receiver/antenna provides 10 Hz update rates for position, velocity and time data. It offers high-sensitivity reception and enhanced position acquisition to the Garmin family of marine multifunctional displays (MFD), instrument display and autopilots.

Please note: If you have a NMEA 2000 network the antenna to purchase is the Garmin GPS 24xd NMEA 2000 Antenna.

Delivers Precise Location Data

Utilising multi-band GNSS system the Garmin GPS 24x HVS NMEA 0183 antenna provides precise location accuracy* to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots. GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo**, GLONASS and BeiDou**) to more accurately track in challenging conditions than GPS alone.

*Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%

**Supported when available in the sky above.

In addition the GPS 24x antenna features a Magnetic Heading sensor. The magnetic heading sensor provides accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speeds.

Finally, built-in Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

Built for Versatility

Part of the Garmin marine instrument family, the GPS 24x HVS NMEA 0183 is built to withstand the elements. The Garmin GPS 24x HVS NMEA 0183 antenna is a waterproof (IPX7) sensor and can be pole mounted or flush mounted. It also can be attached to the underside of many fiberglass decks for added ease of installation.


Key Features

‣Navigate in more locations with expanded GNSS support
‣Get high-sensitivity tracking with fast GPS update rate
‣Accurately pinpoint your heading - regardless of speed
‣Water-resistant (IPX7) to withstand the elements
‣Install it easily with multiple mounting options
‣The antenna is compatible with NMEA 0183 devices.
‣Genuine Garmin Accessory


What's in the box?

‣GPS 24x HVS
‣Pole mount
‣Surface mount
‣Under deck mount
‣Power/data cable
‣Update rate select cable
‣Documentation


What is the Garmin GPS 24x HVS GPS antenna compatible with?

The genuine Garmin GPS 24x HVS GPS antenna is compatible with the following Garmin GPS marine chartplotters/fishfinders:

Garmin echoMAP 43dv, 44dv, 45dv, 50dv, 50s, 52dv, 53cv, 53dv, 54dv, 55dv, 70dv, 70s, 72sv, 73dv, 73sv, 74dv, 74sv, 75sv, 92sv, 93sv, 94sv, 95sv, echoMAP CHIRP 42cv, 42dv, 43cv, 43dv, 44cv, 44dv, 45cv, 45dv, 52cv, 52dv, 53cv, 53dv, 54cv, 54dv, 55cv, 55dv, 72cv, 72dv, 72sv, 73cv, 73dv, 73sv, 74cv, 74dv, 74sv, 75cv, 75dv, 75sv, 92sv, 93sv, 94sv, 95sv, ECHOMAP Plus 42cv, 43cv, 44cv, 45cv, 62cv, 63cv, 64cv, 65cv, 72cv, 72sv, 73cv, 73sv, 74cv, 74sv, 75cv, 75sv, 92sv, 93sv, 93sv, 94sv, 95sv, ECHOMAP UHD 65cv, 75cv, 75sv, 95sv, ECHOMAP Ultra 102sv, 122sv, GPSMAP 1020/1020xs, 1022/1022xsv, 1040xs, 1222/1222xsv, 1222 Plus, 1222xsv Plus, 1222 Touch, 1222xsv Touch, 1223/1223xsv, 3010c, 4008, 4010, 4012, 4208, 4210, 4212, 5008, 5012, 5015, 5208, 5212, 5215, 527/527xs, 557, 6008, 6012, 6208, 6212, 7012, 7015, 7212, 7215, 721/721xs, 722/722xs, 722/722xs Plus, 723/723xs, 741/741xs, 7407/7407xsv, 7408/7408xsv, 7410/7410xsv, 7412/7412xsv, 7416/7416xsv, 820/820xs, 8008 MFD, 8012 MFD, 8015 MFD, 8208 MFD, 8212 MFD, 8410/8410xsv, 8412/8412xsv, 8416/8416xsv, 8417 MFD, 8422 MFD, 8424 MFD, 8500 Black Box, 8530 Black Box, GPSMAP 8700 Black Box, 922, 922 Plus, 922xs, 923/923xs.

The Garmin GPS 24x HVS GPS antenna is also compatible with the following Garmin marine instruments:

Garmin GMI 10 Marine Instrument, GMI 20 Marine Instrument, GNX 120 7-inch Large Format Marine Instrument, GNX 130 10-inch Large Format Marine Instrument, GNX 20 Marine Instrument, GNX 21 Marine Instrument, GNX Wireless Sail Pack, Sail Pack 43.

The Garmin GPS 24x HVS GPS antenna is also compatible with the following Garmin marine radios:

Garmin VHF 110i Marine Radio, VHF 115i Marine Radio, VHF 210i AIS Marine Radio, VHF 210i Marine Radio, VHF 215i AIS Marine Radio, VHF 215i Marine Radio.

Not sure if the GPS 24x HVS GPS antenna will work with your Garmin marine device? Simply contact us with your Garmin model number e.g. Garmin GPSMAP 3010c and we'll confirm whether the GPS 24x HVS antenna is compatible.


Garmin GPS 24x HVS NMEA 0183 Antenna Technical Specification

‣Dimensions (D x H): 91.6 mm x 49.5 mm
‣Weight: 201g (7.1 oz)
‣Cable length: 6metres
‣Temperature range: -22° to 176° F (-30° to 80° C)
‣Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
‣Compass-safe distance: 150mm
‣Power source input: 8-33 Vdc, unregulated
‣Input current: 150 mA at 12 Vdc
‣Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%
Garmin GPS 24x HVS NMEA 0183 Antenna manual

Manual requires Adobe Acrobat Reader
Download a free copy here
