Garmin BC 40 Wireless Reversing Camera

Product Code: GARBC40

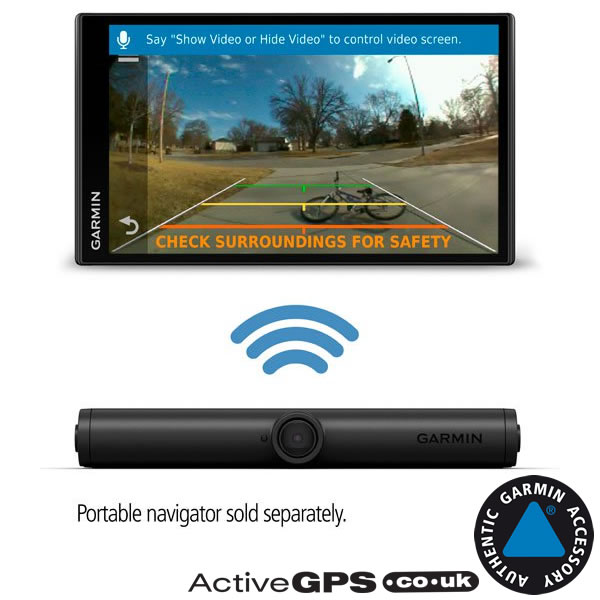

Add a reversing camera to your car, caravan or motorhome by buying the Garmin BC40 wireless reversing camera. Once installed the BC 40 camera system will wirelessly send the images from the BC 40 camera to the screen of your compatible Garmin car sat nav display via Wi-Fi connectivity.

The reversing camera available to buy on this page includes everything you need to complete the full installation of the BC 40 backup camera.

The BC 40 back up camera installs quickly and easily to your vehicle, there is no hard wiring involved. Plus, unlike earlier reversing camera models e.g. BC 30, the BC 40 doesn't require hardwiring to your vehic-les electrical supply. Instead the BC 40 reversing camera is powered by 2x AA batteries.

Garmin part number: 010-01866-10

Compatibility: Compatible with Garmin Camper 770, Camper 780, DriveAssist 51, DriveLuxe 51, DriveSmart 51, DriveSmart 55, DriveSmart 61, DriveSmart 65.


Garmin BC 40 Wireless Reversing Camera - £139.99


Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 5.30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 4.30pm. When possible we may despatch orders received after that time. No orders are despatched after 5.30pm and no orders are despatched on Saturday or Sunday.

We offer FREE UK delivery on all orders of £40.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.


Garmin BC 40 Wireless Backup Camera

Add a reversing camera to your car, caravan or motorhome by buying the Garmin BC40 wireless reversing camera. Once installed the BC 40 camera system will wirelessly send the images from the BC 40 camera to the screen of your compatible Garmin car sat nav display via Wi-Fi connectivity. Compatible Garmin sat navs include: Garmin Camper 780, Garmin DriveAssist 51, DriveLuxe 51 and DriveSmart 65. View full list of Garmin sat navs that are compatible with the BC 40.

When installing the Garmin BC 40 reversing camera onto a caravan, motorhome, camper you might like to consider buying the Garmin BC 40 Camper Mount (pictured right). The Garmin BC 40 camper mount enables you to mount the BC 40 camera in a location other than the number plate.

Quick and easy to install

The BC 40 installs quickly and easily to your vehicle, there is no hard wiring involved. To install simply attach the number plate mount to your vehicle and snap the BC 40 camera into place. An optional mount is also available for mounting the BC 40 camera to the back of a motorhome. For example the number might be located low to the road, the optional BC 40 camera mount enables you to mount the BC 40 camera in a higher position.

Power for up to 3 months via two AA batteries

Unlike earlier reversing camera models e.g. BC 30, the BC 40 doesn't require hardwiring to your vehicles electrical supply. Instead the BC 40 reversing camera is powered by two AA batteries. Garmin recommend using lithium AA batteries and suggest average battery life is 3 months.

Spoken voice control

You can use simple voice commands such as "Show video" to initiate the BC 40 camera view.


Key Features

‣Displays the BC 40 camera view on your compatible Garmin sat nav display
‣Truly wireless backup camera uses 2x AA batteries, and installs quickly and easily by snapping into the included number plate mount
‣160° wide-angle field of view - provides a wide, clear video image of what's behind your vehicle
‣Wirelessly transmits video up to 7 metres
‣Rugged and weatherproof (water-rated to IPX7) to withstand various road conditions
‣Voice commands can initiate the camera view when paired to a compatible Garmin sat nav
‣Genuine Garmin Accessory


What's in the box?

‣BC 40 Reversing Camera
Bracket mount
‣Documentation


Which Garmin sat navs are the BC 40 backup camera compatible with?

The genuine Garmin BC 40 reversing camera is compatible with the following Garmin automotive sat navs:

Garmin Camper 770LMT-D, Camper 780 & Digital Traffic.

Garmin DriveAssist 51 LMT-D, DriveAssist 51 LMT-S.

Garmin DriveLuxe 51 LMT-S.

Garmin DriveSmart 51 LMT-D, DriveSmart 51 LMT-S, DriveSmart 55 & Digital Traffic, DriveSmart 55 & Live Traffic, DriveSmart 61 LMT-D, DriveSmart 61 LMT-S, DriveSmart 65 & Digital Traffic, DriveSmart 65 & Live Traffic.

Garmin DriveTrack 71.


Garmin BC 40 Camera Technical Specification

Physical dimensions:

BC 40: W 15.85 cm x H 2.18 cm x D 2.49 cm
Mount: W 53.5cm x H 14.2cm x D 1.13cm

‣Weight: 58.9 g
‣Battery: 2 AA (lithium recommended, not included)
‣Battery life: Up to 3 months (average life)
‣Water rating: IPX7
‣Camera Resolution: Up to 720p (with compatible Garmin sat-nav)
‣Field of View: 160 degrees
‣Frame Rate: Up to 15 FPS
‣Backup camera compatible: Yes (with compatible Garmin sat-nav)
‣Wireless Transmission Distance: Up to 7 metres


Garmin BC 40 Reversing Camera Accessories

The Garmin BC 40 Reversing Camera available to buy from this webpage includes the bracket mount in the box. This Garmin BC 40 bracket mount is designed to clip onto UK/European rectangular number plates. Should you require affixing the Garmin BC 40 camera on a second vehicles number plate or need to replace the originally supplied BC 40 bracket mount you can buy the first accessory pictured below (click the picture of the bracket mount to view the product page).

If you are requiring affixing the Garmin BC 40 camera onto a motorhome or caravan, a separately available Garmin BC 40 camper mount to buy. Simply click the second pictured accessory below.

Garmin BC 40 Bracket Mount

£17.99

‣Mount the Garmin BC 40 reversing camera onto your vehicles number plate.


Garmin BC 40 Camper Mount

£14.99

‣Mount the Garmin BC 40 reversing camera onto the back of your caravan or motorhome.


Do you have a question about the Garmin BC 40 Camera? Submit your question via our contact page.

Question: I have four questions relating to the Garmin BC 40 camera:

1. Is the lens angle adjustable i.e. if mounted high up to angle down?
2. Does it communicate with the Garmin receiver with digital or analogue signals?
3. Does the camera work at night?
4. Is it as good as a wired in BC30 camera?

Answer: Here are the answers to your questions:

1. Yes this can be adjusted.
2. Yes this works well.
3. It will work, however depending on the light source may struggle.
4. Yes this works just as well, it is simply a newer model.
